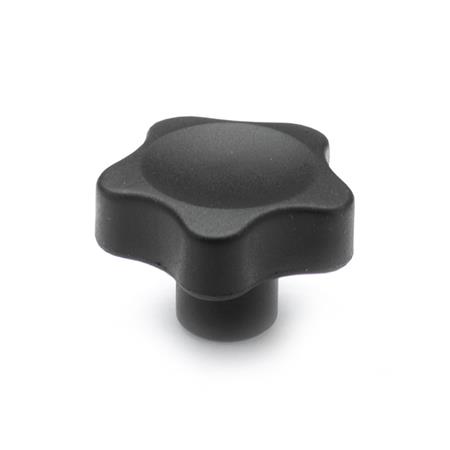

Sterngriffe GN 5337.4, Buchse Edelstahl – Ganter GN 5337.4-32-M5
Dimensional drawing Ganter GN 5337.4-32-M5
Preview: Sterngriffe GN 5337.4, Buchse Edelstahl – Ganter GN 5337.4-32-M5
Preview: Dimensional drawing Ganter GN 5337.4-32-M5
Sterngriffe GN 5337.4, Buchse Edelstahl
Sterngriffe GN 5337.4, Buchse Edelstahl – Ganter GN 5337.4-32-M5
Dimensional drawing Ganter GN 5337.4-32-M5
Mobile Preview: Sterngriffe GN 5337.4, Buchse Edelstahl – Ganter GN 5337.4-32-M5
Mobile Preview: Dimensional drawing Ganter GN 5337.4-32-M5

Sterngriffe GN 5337.4, Buchse Edelstahl

Product No.:
5337.4-32-M5
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d132
    Gewinde d2M 5
    WerkstoffPA - Kunststoff, Polyamid
    d314
    h122,5
    h212,5
    t min.10
    RoHSJa
    Gewicht0,014 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5337.4
    Order designationGN 5337.4-32-M5
    EAN4045525923348
    Manufacturer designation (German)Sterngriffe, Griffkörper Kunststoff, Buchse Edelstahl
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423010102
