Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 32 |
|---|
| Gewinde d2 (Form E) | M 6 |
|---|
| Form | E - mit Abdeckkappe (Gewinde-Sackloch) |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d5 | 15 |
|---|
| d6 | 10 |
|---|
| h1 | 23 |
|---|
| h2 | 10 |
|---|
| t1 | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,012 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5337.2 |
|---|
| Order designation | GN 5337.2-32-M6-E |
|---|
| EAN | 4045525281868 |
|---|

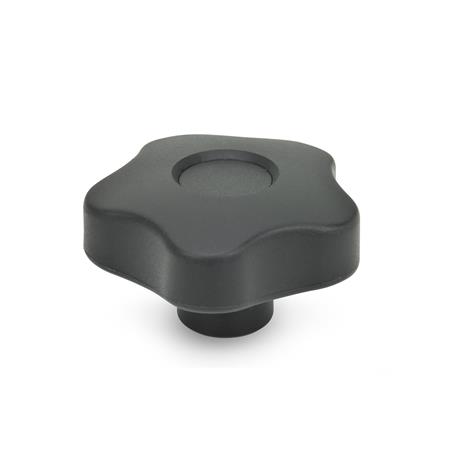

| Manufacturer designation (German) | Sterngriffe, Kunststoff, Buchse Messing / Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
