Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 40 |
|---|
| Gewinde d2 | M 6 |
|---|
| Gewindelänge l | 30 |
|---|
| Farbe der Abdeckkappe | DRT - rot, RAL 3000, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d3 | 13,5 |
|---|
| b | 6 |
|---|
| h1 | 20 |
|---|
| h2 | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,014 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 633 |
|---|
| Order designation | GN 633-40-M6-30-DRT |
|---|
| EAN | 4045525644144 |
|---|

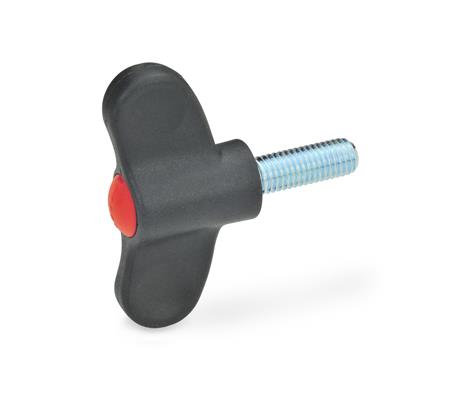

| Manufacturer designation (German) | Flügelschrauben, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 23110601 |
|---|
