Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 63 |
|---|
| d2 | M 12 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d4 | 20 |
|---|
| h1 | 40 |
|---|
| h2 ≈ | 25 |
|---|
| h3 | 14 |
|---|
| t min. | 22 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,084 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6335.1 |
|---|
| Order designation | GN 6335.1-63-M12-E |
|---|
| EAN | 4045525330733 |
|---|

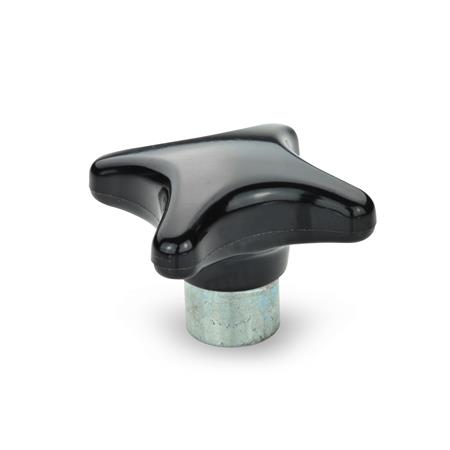

| Manufacturer designation (German) | Kreuzgriffe, Duroplast, mit vorstehender Stahl-Buchse |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181692 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
