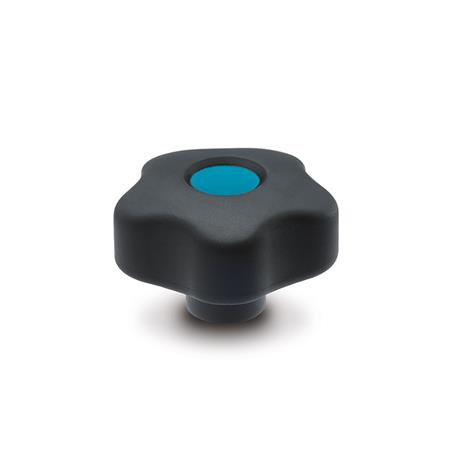

Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig – Ganter GN 5337.6-77-M12-DBL
Dimensional drawing Ganter GN 5337.6-77-M12-DBL
Preview: Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig – Ganter GN 5337.6-77-M12-DBL
Preview: Dimensional drawing Ganter GN 5337.6-77-M12-DBL
Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig
Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig – Ganter GN 5337.6-77-M12-DBL
Dimensional drawing Ganter GN 5337.6-77-M12-DBL
Mobile Preview: Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig – Ganter GN 5337.6-77-M12-DBL
Mobile Preview: Dimensional drawing Ganter GN 5337.6-77-M12-DBL

Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig

Product No.:
5337.6-77-M12-DBL
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d177
    Gewinde d2M 12
    Farbe der AbdeckkappeDBL - blau, RAL 5024, matt
    WerkstoffPP - Kunststoff
    d326
    h146
    h221
    t min.20
    RoHSJa
    Gewicht0,051 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5337.6
    Order designationGN 5337.6-77-M12-DBL
    EAN4045525680593
    Manufacturer designation (German)Sterngriffe, Kunststoff, Buchse Messing, Softline, Abdeckkappe farbig
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423010102
