Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 80 |
|---|
| Gewinde d2 | M 10 |
|---|
| Länge l | 30 |
|---|
| Farbe der Abdeckkappe | DGB - gelb, RAL 1021, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d3 | 30,5 |
|---|
| h1 | 37 |
|---|
| h2 | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,087 kg |
|---|

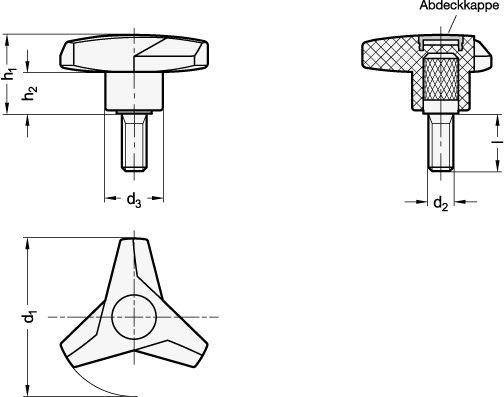

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 533 |
|---|
| Order designation | GN 533-80-M10-30-DGB |
|---|
| EAN | 4045525730908 |
|---|
| Manufacturer designation (German) | Dreisterngriffschrauben, Schraube Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181595 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
