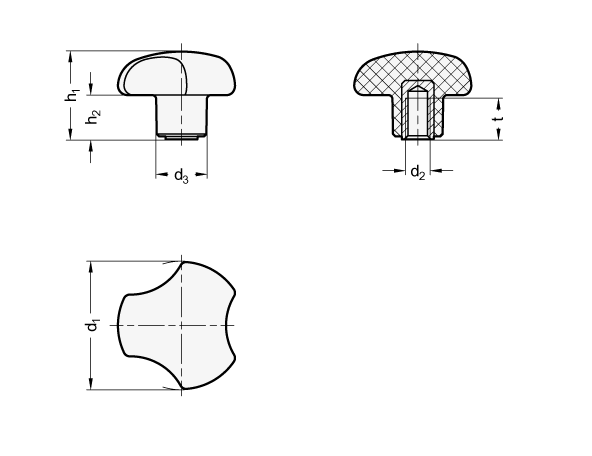

Dimensional drawing Ganter GN 5342-60-M12
Preview: Dreisterngriffe GN 5342, Buchse Edelstahl – Ganter GN 5342-60-M12
Preview: Dimensional drawing Ganter GN 5342-60-M12
Dreisterngriffe GN 5342, Buchse Edelstahl
Dreisterngriffe GN 5342, Buchse Edelstahl – Ganter GN 5342-60-M12
Dimensional drawing Ganter GN 5342-60-M12
Mobile Preview: Dreisterngriffe GN 5342, Buchse Edelstahl – Ganter GN 5342-60-M12
Mobile Preview: Dimensional drawing Ganter GN 5342-60-M12

Dreisterngriffe GN 5342, Buchse Edelstahl

Product No.:
5342-60-M12
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d160
    Gewinde d2M 12
    d322,5
    h134
    h218
    t min.20
    WerkstoffPA - Kunststoff, Polyamid
    RoHSJa
    Gewicht0,067 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5342
    Order designationGN 5342-60-M12
    EAN4045525671430
    Manufacturer designation (German)Dreisterngriffe, Kunststoff, Buchse Edelstahl
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423010102
