Technical data (manufacturer information, German terms)
| Werkstoff | KT - Kunststoff |
|---|
| Griffdurchmesser d1 | 25 |
|---|
| Gewinde d2 (KT, Form K) | M 6 |
|---|
| Form | K - mit Gewindebuchse |
|---|
| d3 | 12 |
|---|
| h1 | 16 |
|---|
| h2 | 8 |
|---|
| t1 min. | 9 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,006 kg |
|---|

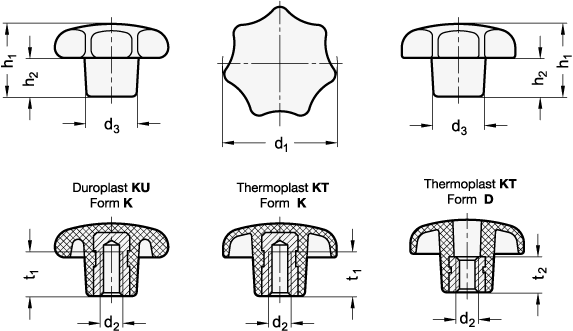

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6336 |
|---|
| Order designation | GN 6336-KT-25-M6-K |
|---|
| EAN | 4045525534964 |
|---|
| Manufacturer designation (German) | Sterngriffe, Kunststoff, Buchse Stahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181692 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
