Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 50 |
|---|
| Gewinde d2 | M 10 |
|---|
| Länge l | 30 |
|---|
| Werkstoff / Oberfläche | MDB - metalldetektierbar, blau, RAL 5001, matt |
|---|
| Werkstoff | KT - Kunststoff |
|---|
| d3 | 19 |
|---|
| h1 | 30 |
|---|
| h2 | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,062 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5342 |
|---|
| Order designation | GN 5342-50-M10-30-MDB |
|---|
| EAN | 4045525662193 |
|---|

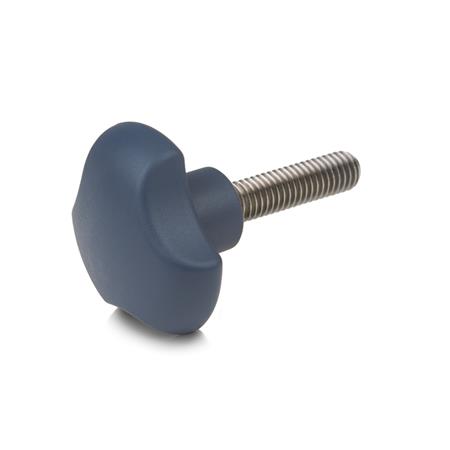

| Manufacturer designation (German) | Dreisterngriffschrauben, detektierbar, FDA-konformer Kunststoff, Schraube Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
