Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 63 |
|---|
| Gewinde d2 | M 6 |
|---|
| Oberfläche | MT - mattiert (Ra < 0,8 µm) |
|---|
| Werkstoff (Dichtring) | E - EPDM |
|---|
| Werkstoff | NI - Edelstahl |
|---|
| b | 7 |
|---|
| d3 | 16 |
|---|
| d4 | 16,8 |
|---|
| d5 | 12 |
|---|
| h1 | 35 |
|---|
| h2 ≈ | 6 |
|---|
| t min. | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,100 kg |
|---|

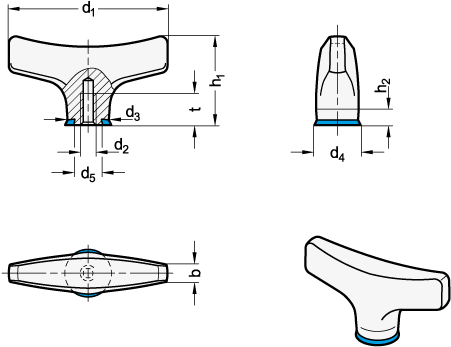

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 8341 |
|---|
| Order designation | GN 8341-63-M6-MT-E |
|---|
| EAN | 4045525858398 |
|---|
| Manufacturer designation (German) | Flügelmuttern, Edelstahl, Hygienic Design |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181639 |
|---|
| eCl@ss 5.1.4 | 23110710 |
|---|
