Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 63 |
|---|
| Gewinde d3 (Form D) | M 12 |
|---|
| Form | D - ohne Abdeckstopfen (Gewinde-Durchloch) |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d4 | 22 |
|---|
| d5 | 19 |
|---|
| h1 | 37 |
|---|
| h2 | 16 |
|---|
| t | 26 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,043 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5337.7 |
|---|
| Order designation | GN 5337.7-63-M12-D |
|---|
| EAN | 4045525669413 |
|---|

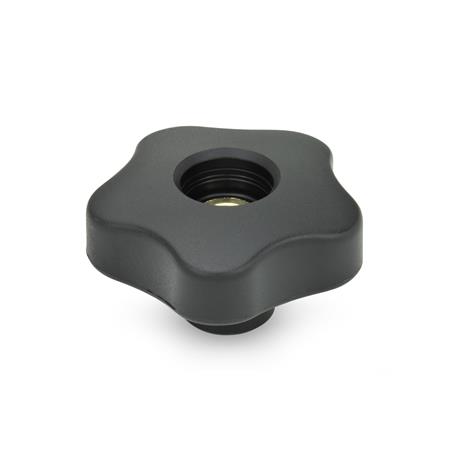

| Manufacturer designation (German) | Sterngriffe, Kunststoff, Buchse Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
