Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 32 |
|---|
| Gewinde d2 | M 6 |
|---|
| Gewindelänge l | 20 |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| b | 13 |
|---|
| h | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,011 kg |
|---|

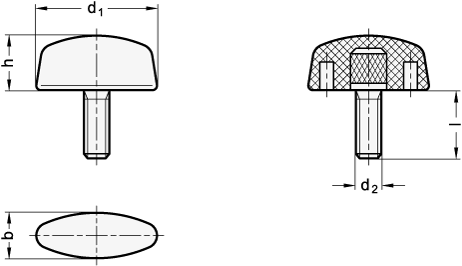

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 531 |
|---|
| Order designation | GN 531-32-M6-20 |
|---|
| EAN | 4045525278332 |
|---|
| Manufacturer designation (German) | Flügelschrauben, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 23110601 |
|---|
