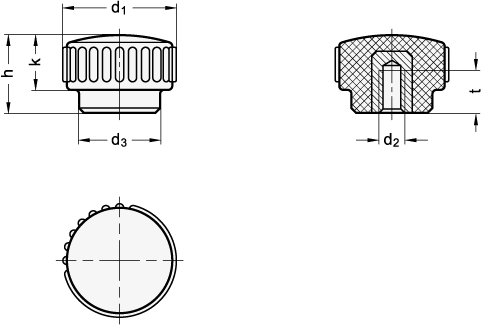

Dimensional drawing Ganter GN 530.5-22-M6
Preview: Rändelmuttern GN 530.5, Buchse Edelstahl – Ganter GN 530.5-22-M6
Preview: Dimensional drawing Ganter GN 530.5-22-M6
Rändelmuttern GN 530.5, Buchse Edelstahl
Rändelmuttern GN 530.5, Buchse Edelstahl – Ganter GN 530.5-22-M6
Dimensional drawing Ganter GN 530.5-22-M6
Mobile Preview: Rändelmuttern GN 530.5, Buchse Edelstahl – Ganter GN 530.5-22-M6
Mobile Preview: Dimensional drawing Ganter GN 530.5-22-M6

Rändelmuttern GN 530.5, Buchse Edelstahl

Product No.:
530.5-22-M6
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d122
    Gewinde d2M 6
    WerkstoffKU - Kunststoff
    d315
    h14
    k10
    t min.6
    RoHSJa
    Gewicht0,008 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 530.5
    Order designationGN 530.5-22-M6
    EAN4045525098497
    Manufacturer designation (German)Rändelmuttern, Duroplast, Buchse Edelstahl
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423110708
