Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 56 |
|---|
| Gewinde d2 | M 12 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Farbe | DRT - rot, RAL 3000, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d5 | 22 |
|---|
| d6 | 23 |
|---|
| d7 | 26,5 |
|---|
| h1 | 29 |
|---|
| h2 | 11 |
|---|
| l | 22 |
|---|
| t1 min. | 13 |
|---|
| t2 min. | 14 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,042 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 636 |
|---|
| Order designation | GN 636-56-M12-E-DRT |
|---|
| EAN | 4045525380769 |
|---|

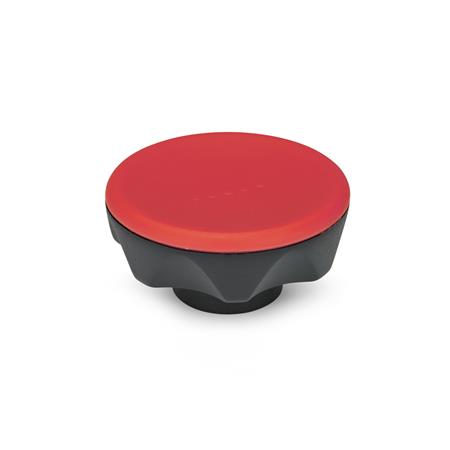

| Manufacturer designation (German) | Sterngriffe, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
