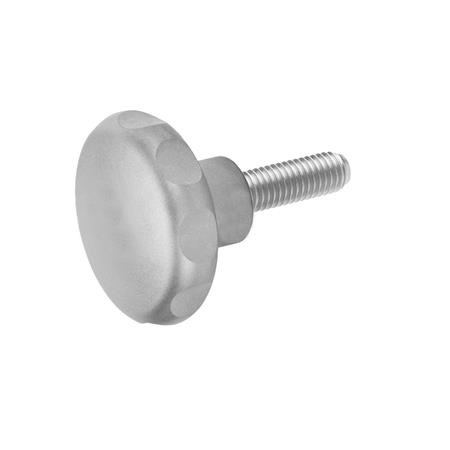

Sterngriffschrauben GN 5335, Edelstahl – Ganter GN 5335-40-M8-25

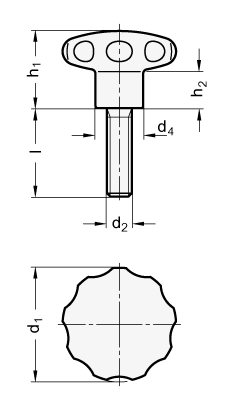

Dimensional drawing Ganter GN 5335-40-M8-25
Preview: Sterngriffschrauben GN 5335, Edelstahl – Ganter GN 5335-40-M8-25
Preview: Dimensional drawing Ganter GN 5335-40-M8-25
Sterngriffschrauben GN 5335, Edelstahl
Sterngriffschrauben GN 5335, Edelstahl – Ganter GN 5335-40-M8-25
Dimensional drawing Ganter GN 5335-40-M8-25
Mobile Preview: Sterngriffschrauben GN 5335, Edelstahl – Ganter GN 5335-40-M8-25
Mobile Preview: Dimensional drawing Ganter GN 5335-40-M8-25

Sterngriffschrauben GN 5335, Edelstahl

Product No.:
5335-40-M8-25
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d140
    Gewinde d2M 8
    Länge l25
    WerkstoffNI - Edelstahl
    d418
    h130,5
    h215
    RoHSJa
    Gewicht0,150 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5335
    Order designationGN 5335-40-M8-25
    EAN4045525066687
    Manufacturer designation (German)Edelstahl-Sterngriffschrauben
    Order unitPiece
    Customs tariff number84879059
    eCl@ss 5.1.423010102
