Technical data (manufacturer information, German terms)
| Werkstoff | GG - Gusseisen |
|---|
| Griffdurchmesser d1 | 80 |
|---|
| Gewinde d2 | M 16 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Oberfläche | ZB - verzinkt, blau passiviert |
|---|
| d4 | 25 |
|---|
| h1 | 50 |
|---|
| h2 min. | 23 |
|---|
| t1 min. | 28 |
|---|
| t2 | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,564 kg |
|---|

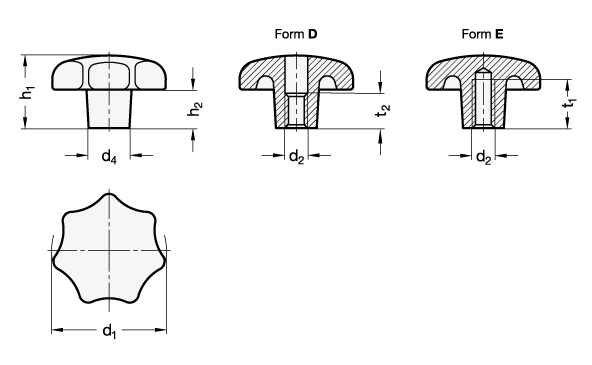

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 6336 |
|---|
| Order designation | DIN 6336-GG-80-M16-E-ZB |
|---|
| EAN | 4045525536739 |
|---|
| Manufacturer designation (German) | Sterngriffe, Gusseisen, verzinkt, blau passiviert |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181699 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
