Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 50 |
|---|
| Gewinde d2 | M 8 |
|---|
| Form | A - ohne Abdeckkappe |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d3 | 19 |
|---|
| d4 | 16 |
|---|
| h1 | 20 |
|---|
| h2 | 1,2 |
|---|
| l1 | 10 |
|---|
| l2 | 17,5 |
|---|
| l3 | 9,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,023 kg |
|---|

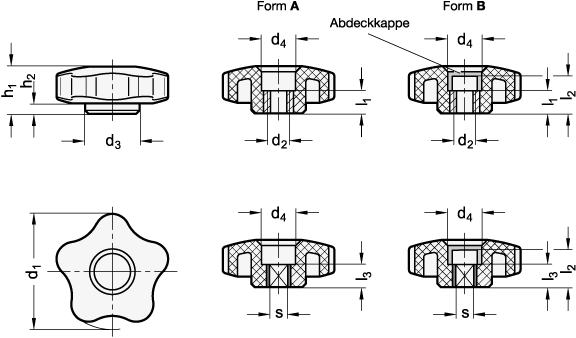

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5331 |
|---|
| Order designation | GN 5331-50-M8-A |
|---|
| EAN | 4045525604520 |
|---|
| Manufacturer designation (German) | Sterngriffe, niedrige Form |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
