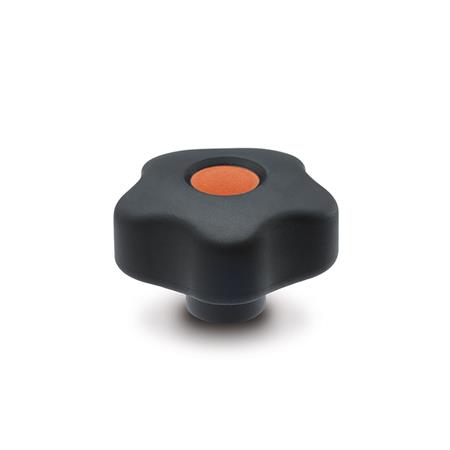

Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig – Ganter GN 5337.6-53-M10-DOR
Dimensional drawing Ganter GN 5337.6-53-M10-DOR
Preview: Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig – Ganter GN 5337.6-53-M10-DOR
Preview: Dimensional drawing Ganter GN 5337.6-53-M10-DOR
Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig
Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig – Ganter GN 5337.6-53-M10-DOR
Dimensional drawing Ganter GN 5337.6-53-M10-DOR
Mobile Preview: Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig – Ganter GN 5337.6-53-M10-DOR
Mobile Preview: Dimensional drawing Ganter GN 5337.6-53-M10-DOR

Softline-Sterngriffe GN 5337.6, Kunststoff, Buchse Messing, Abdeckkappe farbig

Product No.:
5337.6-53-M10-DOR
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d153
    Gewinde d2M 10
    Farbe der AbdeckkappeDOR - orange, RAL 2004, matt
    WerkstoffPP - Kunststoff
    d319
    h134
    h213
    t min.17
    RoHSJa
    Gewicht0,036 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5337.6
    Order designationGN 5337.6-53-M10-DOR
    EAN4045525680203
    Manufacturer designation (German)Sterngriffe, Kunststoff, Buchse Messing, Softline, Abdeckkappe farbig
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423010102
