Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 70 |
|---|
| Gewinde d2 | M 16 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Oberfläche | MT - matte Oberfläche (Gleitschliff) |
|---|
| Werkstoff | AL - Aluminium |
|---|
| d4 | 25 |
|---|
| h1 | 46 |
|---|
| h2 ≈ | 23 |
|---|
| t1 min. | 28 |
|---|
| t2 | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,155 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5336 |
|---|
| Order designation | GN 5336-70-M16-E-MT |
|---|
| EAN | 4045525280762 |
|---|

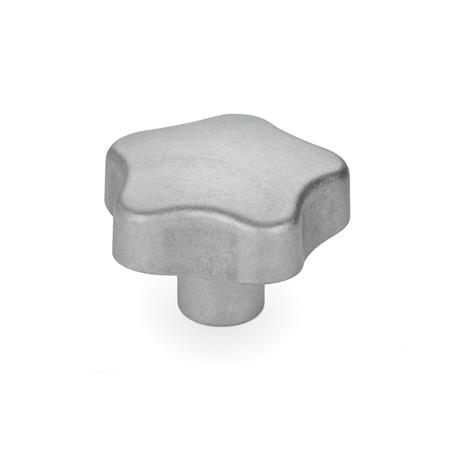

| Manufacturer designation (German) | Sterngriffe, Aluminium |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84879059 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
