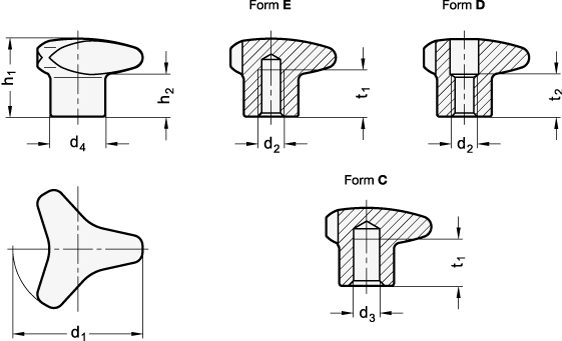

Dimensional drawing Ganter GN 5345.4-50-M8-E
Mobile Preview: Dreisterngriffe GN 5345.4, Edelstahl A4 – Ganter GN 5345.4-50-M8-E
Mobile Preview: Dimensional drawing Ganter GN 5345.4-50-M8-E

Dreisterngriffe GN 5345.4, Edelstahl A4

Product No.:
5345.4-50-M8-E
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d150
    Gewinde d2M 8
    FormE - mit Gewinde-Sackloch
    WerkstoffNI - Edelstahl
    d421
    h130
    h217
    t1 min.15
    t216
    RoHSJa
    Gewicht0,120 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5345.4
    Order designationGN 5345.4-50-M8-E
    EAN4045525918665
    Manufacturer designation (German)Dreisterngriffe, Edelstahl 1.4404 (A4)
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010102
