Technical data (manufacturer information, German terms)
| Werkstoff | A4 - Edelstahl-Feinguss |
|---|
| Griffdurchmesser d1 | 63 |
|---|
| Gewinde d2 | M 12 |
|---|
| Form | D - mit Gewinde-Durchloch |
|---|
| Oberfläche | PL - poliert |
|---|
| d3 | 20 |
|---|
| h1 | 40 |
|---|
| h2 | 23 |
|---|
| t2 | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,194 kg |
|---|

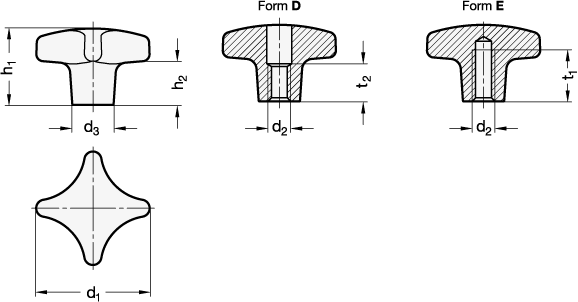

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6335 |
|---|
| Order designation | GN 6335-A4-63-M12-D-PL |
|---|
| EAN | 4045525675360 |
|---|
| Manufacturer designation (German) | Kreuzgriffe, Edelstahl A4 |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181639 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
