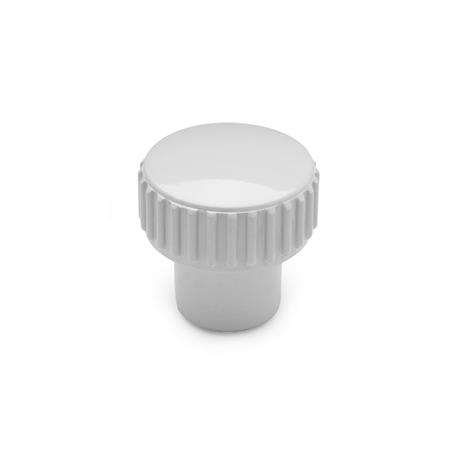

Rändelmuttern GN 530.1, Buchse Edelstahl

Rändelmuttern GN 530.1, Buchse Edelstahl

Name: Rändelmuttern GN 530.1, Buchse Edelstahl
Brand: Ganter
SKU: 530.1-25-M8-WS

You do not have permission to view the prices

Prices and quantity discounts are shown after you log in. No customer account yet? Register now

Description

Technical data (manufacturer information, German terms)

Griffdurchmesser d1	25
Gewinde d2	M 8
Farbe	WS - weiß, RAL 9002, lackiert, glänzend
Werkstoff	KU - Kunststoff
d3	16
h	28
k	14
t min.	13
RoHS	Ja
Gewicht	0,019 kg

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

Article data

Manufacturer	Ganter (Otto Ganter GmbH & Co. KG)
Standard part	GN 530.1
Order designation	GN 530.1-25-M8-WS
EAN	4045525462632
Manufacturer designation (German)	Rändelmuttern mit Edelstahl-Buchse
Order unit	Piece
Customs tariff number	39263000
eCl@ss 5.1.4	23110708
