Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 60 |
|---|
| Bohrung d3 | B 10 |
|---|
| Farbe Griffkörper | SW - schwarz, RAL 9005, matt |
|---|
| Werkstoff | PP - Kunststoff |
|---|
| Griffdurchmesser x1 | 61 |
|---|
| d4 | 23 |
|---|
| h1 | 39 |
|---|
| h2 | 18,5 |
|---|
| t1 min. | 20 |
|---|
| t2 min. | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,067 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|

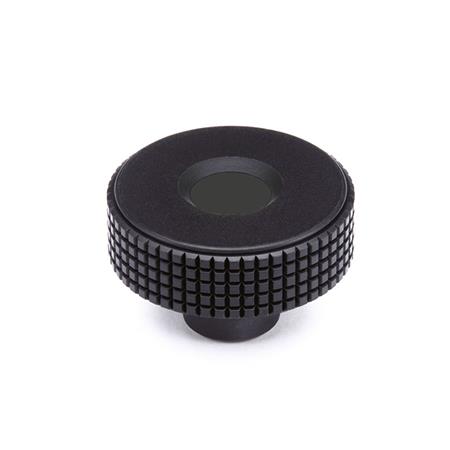

| Standard part | GN 534 |
|---|
| Order designation | GN 534-60-B10-SW |
|---|
| EAN | 4045525283749 |
|---|
| Manufacturer designation (German) | Kordelgriffe, Kunststoff, Abdeckkappe schwarz |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
