Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 32 |
|---|
| Gewinde d2 | M 6 |
|---|
| Form | B - mit Abdeckkappe |
|---|
| Farbe der Abdeckkappe | DOR - orange, RAL 2004, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d3 | 17 |
|---|
| d4 | 11 |
|---|
| h1 | 17 |
|---|
| h2 | 1 |
|---|
| l1 | 8 |
|---|
| l2 | 13,5 |
|---|
| l3 | 6,5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,020 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5331 |
|---|
| Order designation | GN 5331-32-M6-B-DOR |
|---|
| EAN | 4045525676718 |
|---|

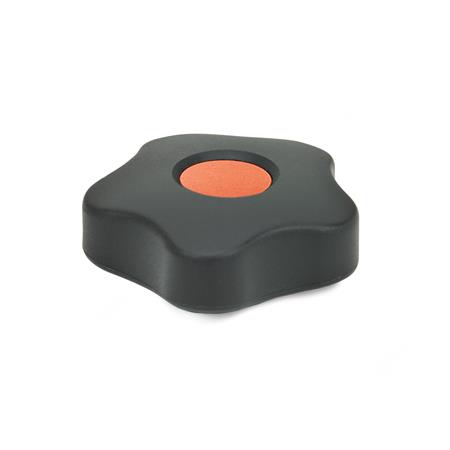

| Manufacturer designation (German) | Sterngriffe, Abdeckkappe farbig |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
