Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 30 |
|---|
| Gewinde d2 | M 8 |
|---|
| Länge l | 40 |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d3 | 24 |
|---|
| h | 18 |
|---|
| k | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,032 kg |
|---|

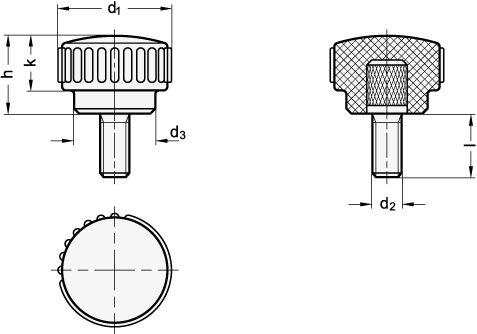

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 529 |
|---|
| Order designation | GN 529-30-M8-40 |
|---|
| EAN | 4045525277984 |
|---|
| Manufacturer designation (German) | Rändelschrauben, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23110116 |
|---|
