Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 50 |
|---|
| Bohrungsdurchmesser d3 | B 10 |
|---|
| Form | C - mit Sackloch H7 |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d4 | 18 |
|---|
| h1 | 32 |
|---|
| h2 | 17 |
|---|
| h3 | 10 |
|---|
| t min. | 18 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,050 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6336.2 |
|---|
| Order designation | GN 6336.2-50-B10-C |
|---|
| EAN | 4045525336834 |
|---|

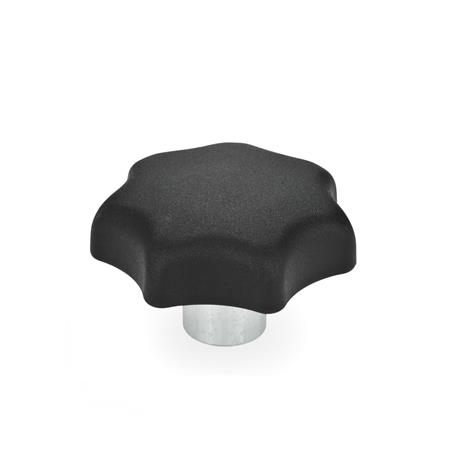

| Manufacturer designation (German) | Sterngriffe, Thermoplast, mit vorstehender Stahlbuchse |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73182900 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
