Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 63 |
|---|
| Gewinde d3 | M 10 |
|---|
| Form | D - ohne Abdeckstopfen (Gewinde-Durchloch) |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d4 | 20 |
|---|
| d5 | 19 |
|---|
| h1 | 35,5 |
|---|
| h2 | 14 |
|---|
| t | 29 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,070 kg |
|---|

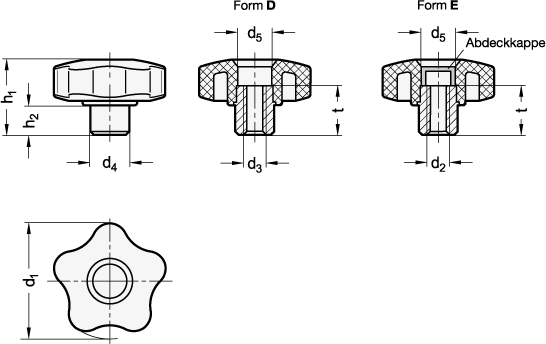

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5337.1 |
|---|
| Order designation | GN 5337.1-63-M10-D |
|---|
| EAN | 4045525743069 |
|---|

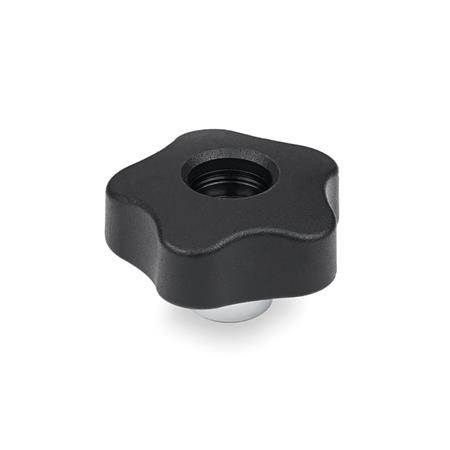

| Manufacturer designation (German) | Sterngriffe mit vorstehender Stahlbuchse, ohne Abdeckkappe |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181595 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
