Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 40 |
|---|
| Vierkant s | V 6 |
|---|
| Werkstoff | KU - Kunststoff |
|---|
| d2 | 14 |
|---|
| d3 | 21 |
|---|
| h1 | 15 |
|---|
| h2 | 10 |
|---|
| t | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,019 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5333 |
|---|
| Order designation | GN 5333-40-V6 |
|---|
| EAN | 4045525279568 |
|---|

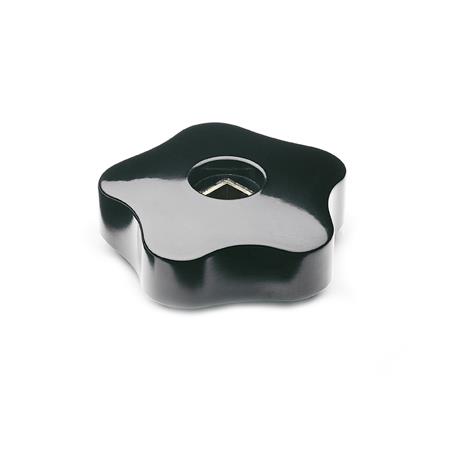

| Manufacturer designation (German) | Sterngriffe, mit Vierkant |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
