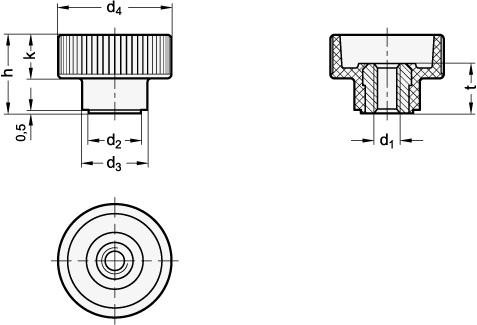

Dimensional drawing Ganter GN 420-M5-NI
Preview: Rändelhohlmuttern GN 420, Buchse Edelstahl – Ganter GN 420-M5-NI
Preview: Dimensional drawing Ganter GN 420-M5-NI
Rändelhohlmuttern GN 420, Buchse Edelstahl
Rändelhohlmuttern GN 420, Buchse Edelstahl – Ganter GN 420-M5-NI
Dimensional drawing Ganter GN 420-M5-NI
Mobile Preview: Rändelhohlmuttern GN 420, Buchse Edelstahl – Ganter GN 420-M5-NI
Mobile Preview: Dimensional drawing Ganter GN 420-M5-NI

Rändelhohlmuttern GN 420, Buchse Edelstahl

Product No.:
420-M5-NI
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    WerkstoffNI - Edelstahl
    Innengewinde d1M 5
    d29
    d312
    d419
    h14
    k8
    t9
    Werkstoff1PA - Kunststoff, Polyamid
    RoHSJa
    Gewicht0,003 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 420
    Order designationGN 420-M5-NI
    EAN4045525241213
    Manufacturer designation (German)Rändelhohlmuttern mit Edelstahl-Buchse
    Order unitPiece
    Customs tariff number39263000
    eCl@ss 5.1.423110708
