Technical data (manufacturer information, German terms)
| Gewinde d1 | M 5 |
|---|
| Gewindelänge l | 25 |
|---|
| Werkstoff | ST - Stahl |
|---|
| d2 | 20 |
|---|
| d3 | 10 |
|---|
| h | 11,5 |
|---|
| k | 4 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,016 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | DIN 464 |
|---|
| Order designation | DIN 464-M5-25 |
|---|
| EAN | 4045525254466 |
|---|

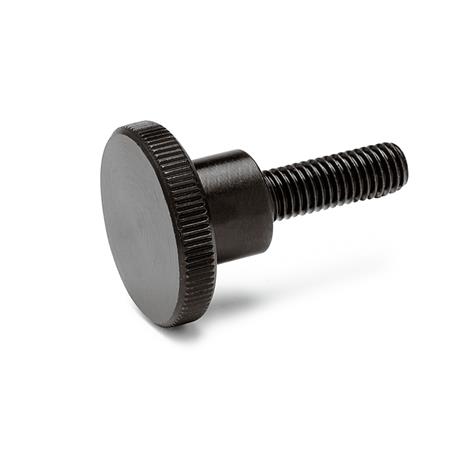

| Manufacturer designation (German) | Rändelschrauben, Stahl, brüniert, hohe Form |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181595 |
|---|
| eCl@ss 5.1.4 | 23110116 |
|---|
