Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 53 |
|---|
| Gewinde d2 | M 10 |
|---|
| Länge l | 30 |
|---|
| Werkstoff | PP - Kunststoff |
|---|
| d3 | 19 |
|---|
| h1 | 34 |
|---|
| h2 | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,040 kg |
|---|

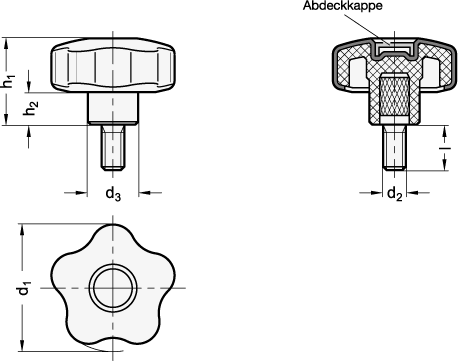

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5337.6 |
|---|
| Order designation | GN 5337.6-53-M10-30 |
|---|
| EAN | 4045525282827 |
|---|
| Manufacturer designation (German) | Sterngriffschrauben, Kunststoff, Gewindestift Stahl, Softline |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
