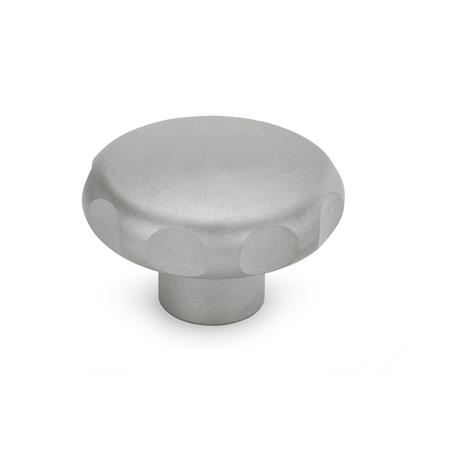

Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4), ohne Bohrung – Ganter GN 5335.4-50-A
Dimensional drawing Ganter GN 5335.4-50-A
Preview: Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4), ohne Bohrung – Ganter GN 5335.4-50-A
Preview: Dimensional drawing Ganter GN 5335.4-50-A
Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4), ohne Bohrung
Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4), ohne Bohrung – Ganter GN 5335.4-50-A
Dimensional drawing Ganter GN 5335.4-50-A
Mobile Preview: Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4), ohne Bohrung – Ganter GN 5335.4-50-A
Mobile Preview: Dimensional drawing Ganter GN 5335.4-50-A

Sterngriffe GN 5335.4, Edelstahl A4, Werkstoff Nr. 1.4404 (A4), ohne Bohrung

Product No.:
5335.4-50-A
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d150
    FormA - ohne Bohrung
    WerkstoffNI - Edelstahl
    d421
    h134
    h217
    RoHSJa
    Gewicht0,220 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5335.4
    Order designationGN 5335.4-50-A
    EAN4045525919013
    Manufacturer designation (German)Edelstahl-Sterngriffe, Werkstoff Nr. 1.4404 (A4), ohne Bohrung
    Order unitPiece
    Customs tariff number83024900
    eCl@ss 5.1.423010102
