Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 40 |
|---|
| Gewinde d2 (Form E) | M 8 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d3 | 13,5 |
|---|
| b | 6,5 |
|---|
| h1 | 21 |
|---|
| h2 | 4,5 |
|---|
| t1 min. | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,009 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 640 |
|---|
| Order designation | GN 640-40-M8-E |
|---|
| EAN | 4045525522428 |
|---|

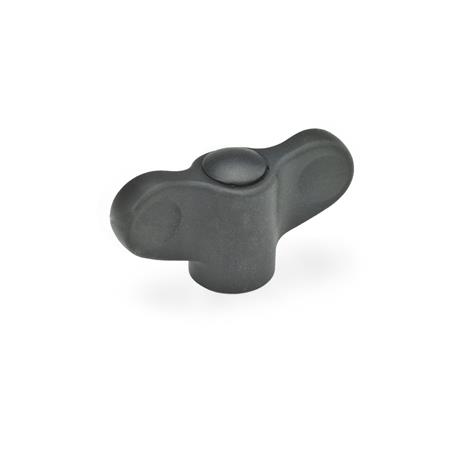

| Manufacturer designation (German) | Flügelmuttern, Kleine Bauform, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 23110710 |
|---|
