Technical data (manufacturer information, German terms)
| Werkstoff | SG - Gusseisen |
|---|
| Griffdurchmesser d1 | 50 |
|---|
| Gewinde d2 | M 10 |
|---|
| Länge l (Werkstoff ST) | 55 |
|---|
| d3 | 18 |
|---|
| h1 | 32 |
|---|
| h2 | 15 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,182 kg |
|---|

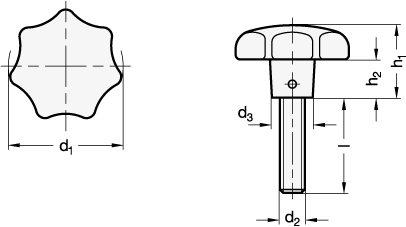

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6336.4 |
|---|
| Order designation | GN 6336.4-SG-50-M10-55 |
|---|
| EAN | 4045525339354 |
|---|
| Manufacturer designation (German) | Sterngriffschrauben, Gusseisen, Stahl-Gewindestift |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181595 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
