Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 63 |
|---|
| Gewinde d2 | M 12 |
|---|
| Länge l | 30 |
|---|
| Werkstoff | TE - Thermoplast (Polyamid PA) |
|---|
| d3 | 20 |
|---|
| h1 | 40 |
|---|
| h2 | 21 |
|---|
| h3 | 14 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,124 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 6336.5 |
|---|
| Order designation | GN 6336.5-TE-63-M12-30 |
|---|
| EAN | 4045525380042 |
|---|

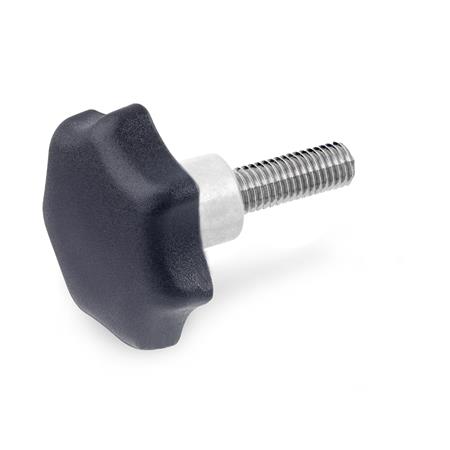

| Manufacturer designation (German) | Sterngriffschrauben, Kunststoff, mit vorstehendem Edelstahl-Bund, Gewindestift Edelstahl |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181535 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
