Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 42 |
|---|
| Gewinde d2 | M 8 |
|---|
| Form | CSF - mit Schlüssel, Kugelknopf |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d3 | 16,5 |
|---|
| h1 | 30 |
|---|
| h2 | 14,5 |
|---|
| h3 | 0,5 |
|---|
| Länge | 13 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,028 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 5337.8 |
|---|
| Order designation | GN 5337.8-42-M8-CSF |
|---|
| EAN | 4045525528376 |
|---|

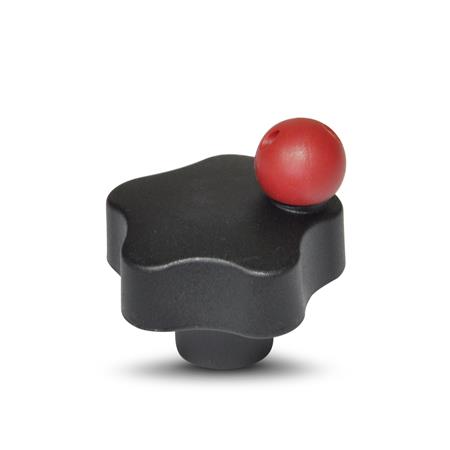

| Manufacturer designation (German) | Sicherheits-Sterngriffe mit Schlüssel |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010102 |
|---|
