Technical data (manufacturer information, German terms)
| Griffradius r | 27,5 |
|---|
| Gewinde d1 | M 8 |
|---|
| Form | E - mit Gewinde-Sackloch |
|---|
| Farbe der Abdeckkappe | DRT - rot, RAL 3000, matt |
|---|
| Werkstoff | PA - Kunststoff, Polyamid |
|---|
| d2 | 16 |
|---|
| d4 | 12 |
|---|
| b | 8 |
|---|
| h1 | 28 |
|---|
| h2 | 6,5 |
|---|
| h3 | 18 |
|---|
| h4 | 25 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,014 kg |
|---|
Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 635 |
|---|

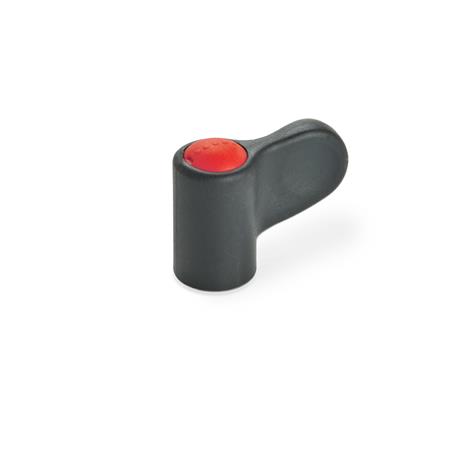

| Order designation | GN 635-27,5-M8-E-DRT |
|---|
| EAN | 4045525345256 |
|---|
| Manufacturer designation (German) | Flügelmuttern, Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39269097 |
|---|
| eCl@ss 5.1.4 | 23110710 |
|---|
