Technical data (manufacturer information, German terms)
| Werkstoff | ESD - Kunststoff |
|---|
| Griffdurchmesser d1 | 16 |
|---|
| Gewinde d2 | M 5 |
|---|
| Gewindelänge l | 10 |
|---|
| d3 | 11 |
|---|
| h | 13 |
|---|
| k | 8 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,004 kg |
|---|

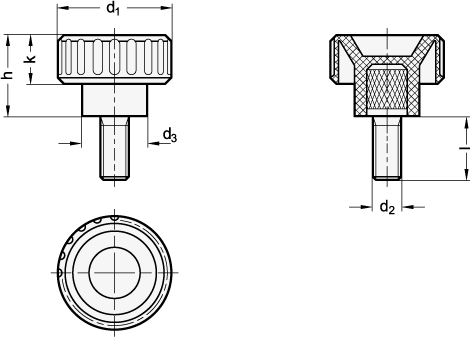

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 591 |
|---|
| Order designation | GN 591-16-M5-10-ESD |
|---|
| EAN | 4045525520646 |
|---|
| Manufacturer designation (German) | Rändelschrauben aus antistatischem Kunststoff |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23110116 |
|---|
