Sterngriffe GN 5334.4, Edelstahl A4
Sterngriffe GN 5334.4, Edelstahl A4 – Ganter GN 5334.4-50-B10-C

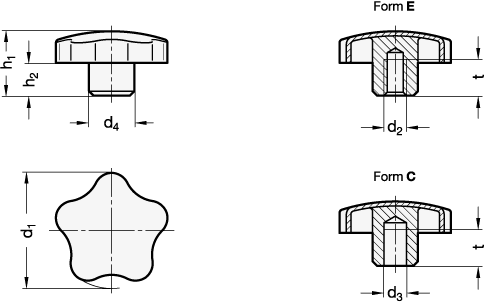

Dimensional drawing Ganter GN 5334.4-50-B10-C
Mobile Preview: Sterngriffe GN 5334.4, Edelstahl A4 – Ganter GN 5334.4-50-B10-C
Mobile Preview: Dimensional drawing Ganter GN 5334.4-50-B10-C

Sterngriffe GN 5334.4, Edelstahl A4

Product No.:
5334.4-50-B10-C
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Prices and quantity discounts are shown after you log in. No customer account yet? Register now

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Griffdurchmesser d150
    Bohrung d3B 10
    FormC - mit Sackloch H7
    WerkstoffNI - Edelstahl
    d418
    h1 ≈30
    h2 ≈16,5
    t min.18
    RoHSJa
    Gewicht0,067 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 5334.4
    Order designationGN 5334.4-50-B10-C
    EAN4045525918740
    Manufacturer designation (German)Sterngriffe, Edelstahl 1.4404 (A4)
    Order unitPiece
    Customs tariff number73181692
    eCl@ss 5.1.423010102
