Technical data (manufacturer information, German terms)
| Griffdurchmesser d1 | 42 |
|---|
| d3 | 19 |
|---|
| d4 | 8,1 |
|---|
| h1 | 26 |
|---|
| h2 | 13 |
|---|
| s1 | 5 |
|---|
| s2 | 5 |
|---|
| sw | 13 |
|---|
| Werkstoff1 | PA - Kunststoff, Polyamid |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,016 kg |
|---|

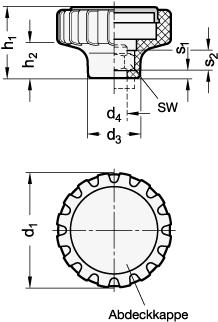

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 7336 |
|---|
| Order designation | GN 7336-42 |
|---|
| EAN | 4045525711853 |
|---|
| Manufacturer designation (German) | Rändelgriffe, Kunststoff, ohne Gewindeeinsatz |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 39263000 |
|---|
| eCl@ss 5.1.4 | 23010190 |
|---|
