Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Durchmesser d1 | 12 |
|---|
| Gewinde | M 6 |
|---|
| d3 Rundteil | 15 - 20 |
|---|
| d4 | 12 |
|---|
| d5 | M 4 |
|---|
| e | d~3~ / 2 + 3,5 |
|---|
| l1 max. | 39 |
|---|
| l2 | 12 |
|---|
| l3 | 6 |
|---|
| sw | 5 |
|---|
| Max. Anzugsmoment in Nm | 10 |
|---|
| Artikel-Nr. Montagewerkzeug | 928.1-5 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,022 kg |
|---|

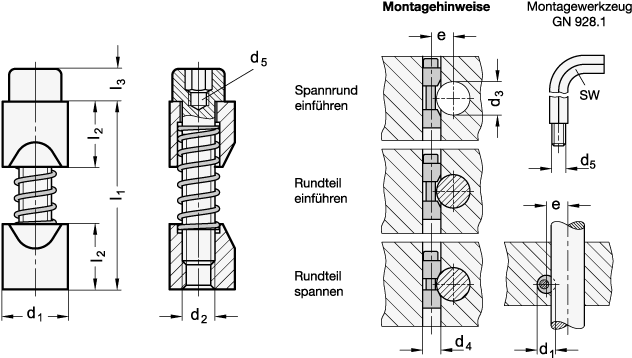

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 928 |
|---|
| Order designation | GN 928-12-NI |
|---|
| EAN | 4045525247321 |
|---|
| Manufacturer designation (German) | Klemmelemente, Edelstahl, "Spannrund" |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020790 |
|---|
