Technical data (manufacturer information, German terms)
| Durchmesser d1 | 50 |
|---|
| Form | GV - mit Kugelgriff, gerade (Kerbverzahnung) |
|---|
| Spannrichtung | L - durch Linksdrehung |
|---|
| Werkstoff | ST - Stahl |
|---|
| Gewinde | M 10 |
|---|
| d3 | 30 |
|---|
| d5 | 28 |
|---|
| d6 | 24 |
|---|
| h1 | 12 |
|---|
| h2 | 35 |
|---|
| h3 | 24,5 |
|---|
| h4 ≈ | 62 |
|---|
| h5 | 36 |
|---|
| h7 ≈ | 0,2 |
|---|
| l1 | 11 |
|---|
| l2 ≈ | 116 |
|---|
| sw | 19 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,292 kg |
|---|

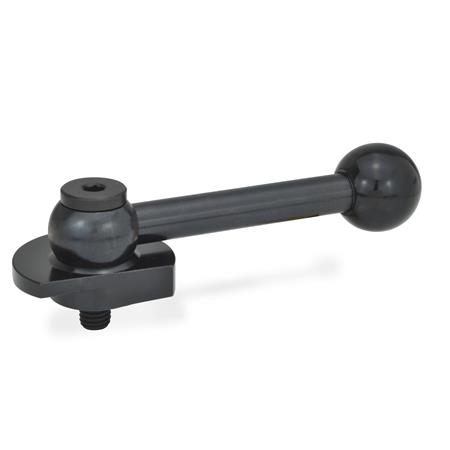

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 918.2 |
|---|
| Order designation | GN 918.2-50-GV-L |
|---|
| EAN | 4045525890282 |
|---|
| Manufacturer designation (German) | Spannriegel, Stahl, Spannung nach unten, mit Gewindezapfen |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662020 |
|---|
| eCl@ss 5.1.4 | 23010590 |
|---|
