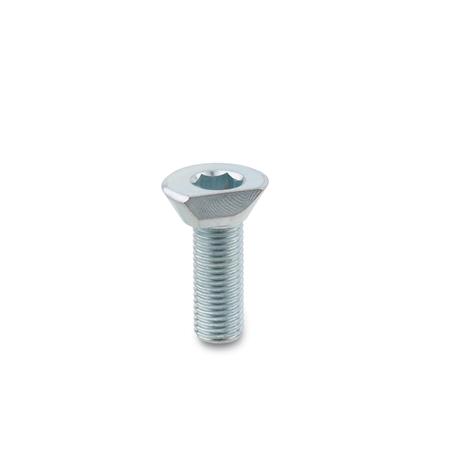

Technical data (manufacturer information, German terms)
| Außendurchmesser d1 | 9 |
|---|
| Gewinde d2 | M 4 |
|---|
| Gewindelänge l | 8 |
|---|
| Form | R - Spannen durch Rechtsdrehung (d~2~ = Rechtsgewinde) |
|---|
| Werkstoff | ST - Stahl |
|---|
| Istmaß | 9,2 |
|---|
| h1 | 3 |
|---|
| h2 | 3 |
|---|
| r1 | 4 |
|---|
| r2 | 4,6 |
|---|
| s1 | 1 |
|---|
| s2 | 0,6 |
|---|
| sw | 2,5 |
|---|
| x | 3,5 |
|---|
| z | 4,2 |
|---|
| Max. Anzugsmoment in Nm | 1,5 |
|---|
| Max. Spannkraft F in kN | 0,09 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,002 kg |
|---|

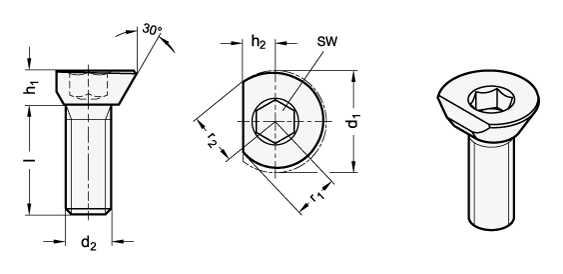

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 418.2 |
|---|
| Order designation | GN 418.2-9-M4-8-R |
|---|
| EAN | 4045525044104 |
|---|
| Manufacturer designation (German) | Spiralspannschrauben |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 73181568 |
|---|
| eCl@ss 5.1.4 | 23110110 |
|---|
