Technical data (manufacturer information, German terms)
| a Nutbreite | 14 |
|---|
| d1 | M 12 |
|---|
| Form | E - mit geriffelter Spannbacke |
|---|
| Kennzeichen | L - Spannhub durch Linksdrehung |
|---|
| Werkstoff | ST - Stahl |
|---|
| FS in kN max. Spannkraft | 7 |
|---|
| b | 48 |
|---|
| d2 | 12,5 |
|---|
| h1 | 38 |
|---|
| h2 | 16 |
|---|
| h3 | 62 |
|---|
| h4 | 40 |
|---|
| h5 | 19,1 |
|---|
| l1 | 190 |
|---|
| l2 | 40 |
|---|
| l3 | 72 |
|---|
| s Spannweg | 4 |
|---|
| empfohlene Schraube in Kombination mit GN 9190.3 | DIN 912-M12x35 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,845 kg |
|---|

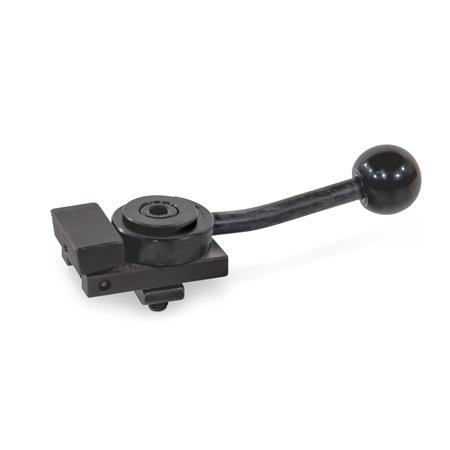

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 9190 |
|---|
| Order designation | GN 9190-14-M12-E-L |
|---|
| EAN | 4045525720268 |
|---|
| Manufacturer designation (German) | Niederzugspanner, Stahl, mit Spiral-Spannhebel |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662098 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
