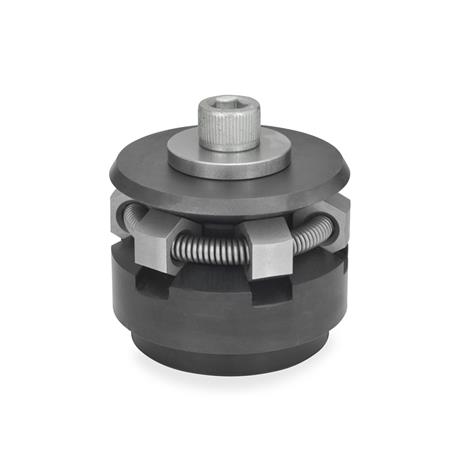

Zentrierspanner GN 411.2, Stahl – Ganter GN 411.2-38,5-S
Dimensional drawing Ganter GN 411.2-38,5-S
Preview: Zentrierspanner GN 411.2, Stahl – Ganter GN 411.2-38,5-S
Preview: Dimensional drawing Ganter GN 411.2-38,5-S
Zentrierspanner GN 411.2, Stahl
Zentrierspanner GN 411.2, Stahl – Ganter GN 411.2-38,5-S
Dimensional drawing Ganter GN 411.2-38,5-S
Mobile Preview: Zentrierspanner GN 411.2, Stahl – Ganter GN 411.2-38,5-S
Mobile Preview: Dimensional drawing Ganter GN 411.2-38,5-S

Zentrierspanner GN 411.2, Stahl

Product No.:
411.2-38,5-S
ca. 3-5 days ca. 3-5 days (abroad may vary)
manufacturer:
Ganter Norm
    You do not have permission to view the prices

    Add to wish list
    Description

    Technical data (manufacturer information, German terms)

    Durchmesser d138,5
    FormS - mit Spannsegmenten
    WerkstoffST - Stahl
    d2 Spann-Ø46,5
    d330
    d4M 8
    d58,4
    d64
    h17,5
    h24,5
    k11
    l118
    l227,2
    l312
    t min.10
    w12,3
    w24,6
    Anzahl Spannelemente6
    Spannkraft in kN6,5
    RoHSJa
    Gewicht0,233 kg

    Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.

    Article data

    ManufacturerGanter (Otto Ganter GmbH & Co. KG)
    Standard partGN 411.2
    Order designationGN 411.2-38,5-S
    EAN4045525680951
    Manufacturer designation (German)Zentrierspanner, Stahl
    Order unitPiece
    Customs tariff number82057000
    eCl@ss 5.1.421020790
