Technical data (manufacturer information, German terms)
| a Nutbreite | 18 |
|---|
| d1 | M 16 |
|---|
| Form | E - mit geriffelter Spannbacke |
|---|
| Kennzeichen | K - Spannhub mit verstellbarem Klemmhebel |
|---|
| Werkstoff | ST - Stahl |
|---|
| FS in kN max. Spannkraft | 21,5 |
|---|
| b | 68 |
|---|
| d2 | 16,5 |
|---|
| d4 | M 16 |
|---|
| h1 | 47 |
|---|
| h2 | 35 |
|---|
| h3 | 13 |
|---|
| l1 | 86 |
|---|
| l2 | 41 |
|---|
| l3 | 56 |
|---|
| l4 | 108 |
|---|
| s Spannweg | 7 |
|---|
| max. Anzugsdrehmoment MA in Nm | 20 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 2,112 kg |
|---|

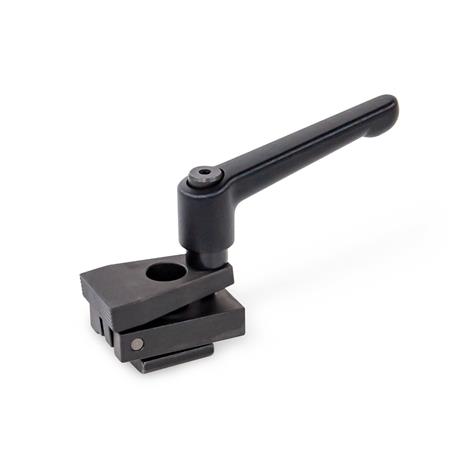

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 9190.1 |
|---|
| Order designation | GN 9190.1-18-M16-E-K |
|---|
| EAN | 4045525746824 |
|---|
| Manufacturer designation (German) | Niederzugspanner, Stahl, mit Spanngewinde |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662098 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
