Technical data (manufacturer information, German terms)
| Breite l1 | 25 |
|---|
| Schlüsselweite l2 | 32 |
|---|
| Gewinde d1 | M 8 |
|---|
| Werkstoff | ST - Stahl |
|---|
| a Form GA Form GL max. | 44,5 |
|---|
| min. | 39,5 |
|---|
| Form PR Form RF max. | 39,5 |
|---|
| b | 21 |
|---|
| d2 {Sp:s} | 18 |
|---|
| h1 ≈ | 27,5 |
|---|
| h2 | 4 |
|---|
| Länge l3 max. | 7,5 |
|---|
| für Keilspanner GN 920.1 mit: d | M 8 |
|---|
| b | 21 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,060 kg |
|---|

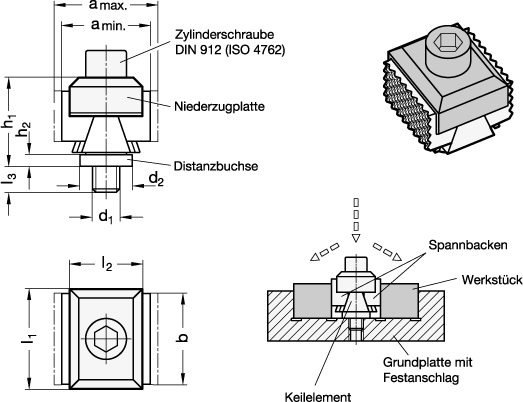

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 920.2 |
|---|
| Order designation | GN 920.2-25-32-M8 |
|---|
| EAN | 4045525749184 |
|---|
| Manufacturer designation (German) | Niederzugplatten für Keilspanner GN 920.1 |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662020 |
|---|
| eCl@ss 5.1.4 | 21020790 |
|---|
