Technical data (manufacturer information, German terms)
| a Nutbreite | 14 |
|---|
| d1 | M 12 |
|---|
| Form | E - mit geriffelter Spannbacke |
|---|
| Kennzeichen | K - Spannhub mit verstellbarem Klemmhebel |
|---|
| Werkstoff | ST - Stahl |
|---|
| FS in kN max. Spankraft | 15 |
|---|
| b1 | 48 |
|---|
| b2 | 16 |
|---|
| d2 | 13 |
|---|
| d3 | M 12 |
|---|
| d4 | M 12 |
|---|
| h1 | 53 |
|---|
| h2 | 45 |
|---|
| h3 | 27 |
|---|
| h4 | 15 |
|---|
| l1 | 72 |
|---|
| l2 | 40 |
|---|
| l3 | 44 |
|---|
| l4 | 100 |
|---|
| l5 | 55 |
|---|
| l6 | 78 |
|---|
| s Spannweg | 4 |
|---|
| max. Anzugsdrehmoment MA in Nm | 9 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 1,553 kg |
|---|

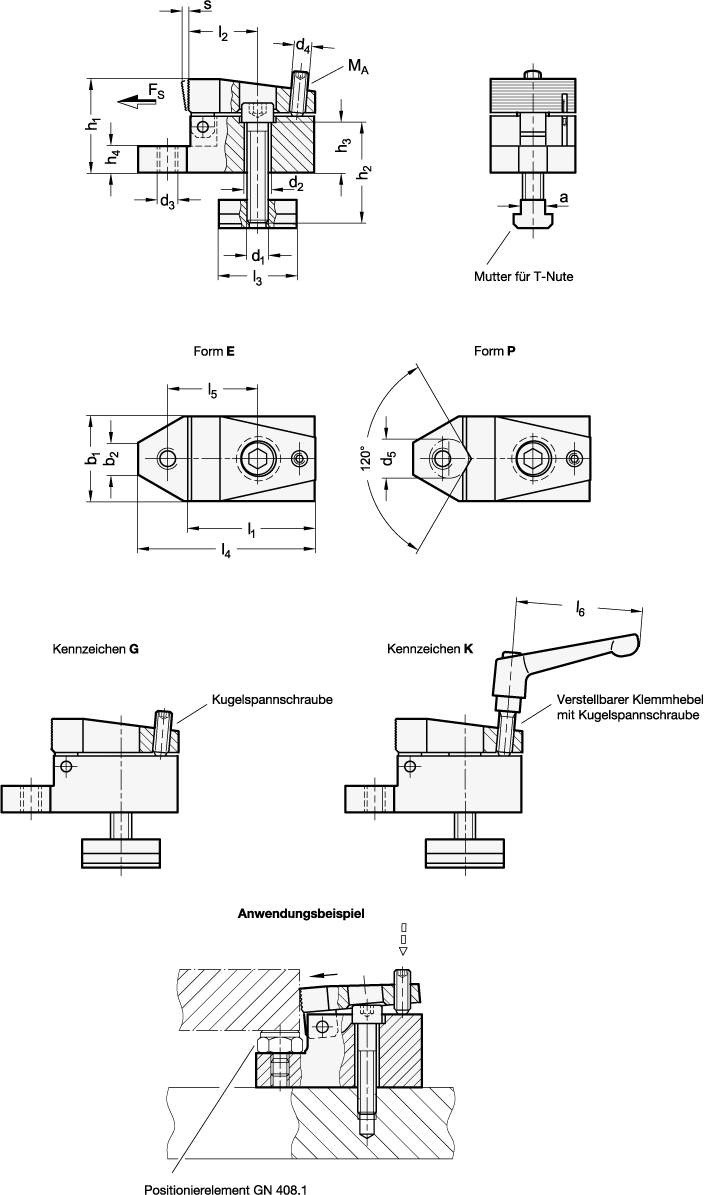

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 9190.2 |
|---|
| Order designation | GN 9190.2-14-M12-E-K |
|---|
| EAN | 4045525748255 |
|---|
| Manufacturer designation (German) | Niederzugspanner, Stahl, mit Spanngewinde und Auflage |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 84662098 |
|---|
| eCl@ss 5.1.4 | 21020790 |
|---|
