Technical data (manufacturer information, German terms)
| Werkstoff | NI - Edelstahl |
|---|
| Größe | 230 |
|---|
| Form | M - offener Spannarm, mit 2 Flankenscheiben |
|---|
| FH in N Haltekraft | 1700 |
|---|
| a ≈ | 37 |
|---|
| b1 | 44 |
|---|
| b2 | 42 |
|---|
| b3 | 8,5 |
|---|
| d1 | M 8 |
|---|
| d2 | 6,5 |
|---|
| h1 ≈ | 61,5 |
|---|
| h2 | 36,5 |
|---|
| h3 | 18 |
|---|
| l1 ≈ | 196 |
|---|
| l2 ≈ | 110 |
|---|
| l3 ≈ | 63,5 |
|---|
| l4 max. | 78 |
|---|
| m1 | 26 |
|---|
| m2 | 26 |
|---|
| m3 | 31,5 |
|---|
| r ≈ | 72 |
|---|
| s1 | 3 |
|---|
| s2 | 6 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,325 kg |
|---|

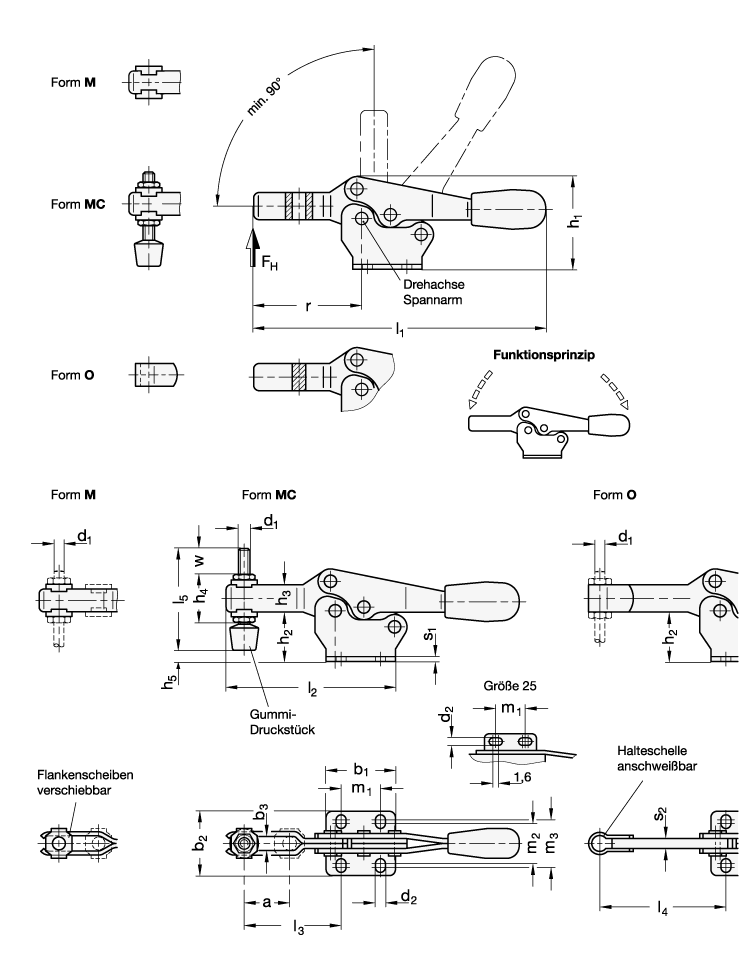

Dimension letters (e.g. d1, l1) refer to the dimensional drawing in the product images; dimensions in mm.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 820 |
|---|
| Order designation | GN 820-230-M-NI |
|---|
| EAN | 4045525385580 |
|---|
| Manufacturer designation (German) | Schnellspanner, Edelstahl, Spannhebel horizontal, mit waagrechtem Fuß |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 82057000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
