Technical data (manufacturer information, German terms)
| Werkstoff | ST - Stahl |
|---|
| Größe | 110 |
|---|
| Haltekraft | 1100 |
|---|
| b1 | 30 |
|---|
| b2 | 24 |
|---|
| b3 | 52 |
|---|
| b4 | 35 |
|---|
| b5 | 37 |
|---|
| b6 | 19 |
|---|
| b7 | 36 |
|---|
| d1 | 5,2 |
|---|
| d2 | 4,2 |
|---|
| h1 ≈ | 20 |
|---|
| h2 ≈ | 13 |
|---|
| h3 | 22 |
|---|
| l1 min. | 140 |
|---|
| l2 | 51 |
|---|
| l3 min. | 78 |
|---|
| m1 | 36 |
|---|
| m2 | 8 |
|---|
| m3 | 10 |
|---|
| m4 | 15 |
|---|
| m5 | 5,5 |
|---|
| r ≈ | 63 |
|---|
| w1 ≈ Hub | 16 |
|---|
| w2 ≈ Verstellweg | 12 |
|---|
| RoHS | Ja |
|---|
| Gewicht | 0,104 kg |
|---|
The dimensional drawing for this version is available on request.
Article data
| Manufacturer | Ganter (Otto Ganter GmbH & Co. KG) |
|---|
| Standard part | GN 831.2 |
|---|
| Order designation | GN 831.2-110-ST |
|---|
| EAN | 4045525112728 |
|---|

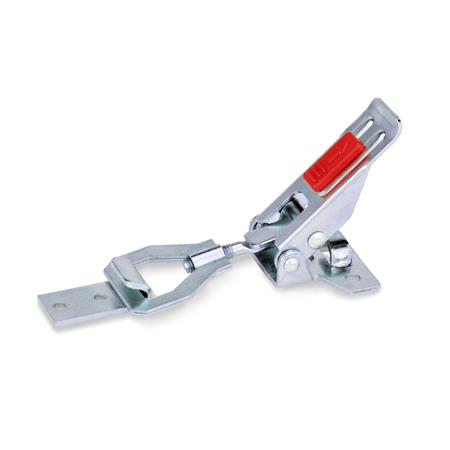

| Manufacturer designation (German) | Spannverschlüsse, Stahl / Edelstahl, mit Sicherung |
|---|
| Order unit | Piece |
|---|
| Customs tariff number | 83089000 |
|---|
| eCl@ss 5.1.4 | 21020701 |
|---|
